With the RTX 50 and RX 9000 series now standard in gaming builds, every ATX 3.1-certified PSU with a 12V-2x6 connector has jumped in relevance — and the fully modular tier has gotten more competitive than ever. All five picks here are fully modular, ATX 3.1 compliant, and rated 850W, covering single-GPU builds from $400 cards up through RTX 5080-class setups requiring sustained 380W delivery.
Quick Picks
- Best overall: Corsair RM850x ATX 3.1 — Proven platform, zero-RPM fan, 10-year warranty, native 12V-2x6
- Best efficiency: Seasonic Focus GX-850 V4 — Dual Cybenetics Platinum + 80+ Gold, 92%+ at 50% load, compact depth
- Best value: be quiet! Pure Power 13 M 850W — Quietest in class, full modular, $40 cheaper than Corsair
Fully vs. Semi-Modular: Which One to Buy
Fully modular PSUs let you connect only the cables your build needs. For most mid-tower and small mid-tower builds, that means omitting the 24-pin extension, extra SATA runs, and spare peripheral cables that sit in your cable management channels doing nothing. The result is less heat trapped behind the motherboard tray and a cleaner build overall.
Semi-modular PSUs permanently attach the 24-pin ATX and CPU power cables. These are fine for budget builds where you’d use those cables anyway, but every unit in this roundup is fully modular because once you’ve managed cables in a fully modular build, going back is difficult.
ATX 3.1 and 12V-2x6: Why It Matters in 2026
The RTX 4090 was the first card to require the 12VHPWR connector, and the adapter-related melting incidents from 2023 triggered a redesign. The 12V-2x6 connector introduced in ATX 3.1 fixes this with a shorter pin design that prevents the sense pins from losing contact when the cable is bent at the GPU entry point. Every PSU in this roundup uses 12V-2x6 natively — no adapter required.
ATX 3.1 also introduces a tighter transient response spec: PSUs must handle a 200% rated load spike for 100 microseconds without output voltage collapsing. This matters for the RTX 5080 and 5090, which can spike above their rated TDP during frame generation workloads.
Wattage: What’s Right for Your Build
| GPU | Recommended Minimum PSU |
|---|---|
| RTX 5060 Ti 16GB (180W) + Ryzen 5 9600X | 650W |
| RTX 5070 12GB (250W) + Ryzen 7 9700X | 750W |
| RTX 5070 Ti 16GB (285W) + Ryzen 7 9800X3D | 850W |
| RTX 5080 16GB (360W) + Core Ultra 9 285K | 850W–1000W |
| RTX 5090 32GB (575W) | 1000W–1200W |
All five units reviewed here are 850W, which covers 95% of mainstream and high-end single-GPU gaming builds. If you’re pairing an RTX 5090 with a Ryzen 9 9950X3D under full load, step up to a 1000W or 1200W unit.
Efficiency Ratings Explained: 80+ Gold vs Cybenetics
80+ Gold means the PSU reaches 87% efficiency at 20% load, 90% at 50% load, and 87% at 100% load. These numbers are measured in a controlled 50°C ambient environment, not real-world conditions.
Cybenetics is a separate independent certification lab that tests at actual operating temperatures and reports a more complete efficiency curve. Several units carry both certifications. Cybenetics Platinum (92%+ at 50% load) is meaningfully better than Gold and translates to roughly 8–12W less heat output at typical gaming loads — noticeable if you care about case temperatures.
The Seasonic Focus GX-850 V4 is the only 850W unit here with Cybenetics Platinum. The Corsair RM850x, NZXT C850, and MSI MPG A850G are all Cybenetics Gold.

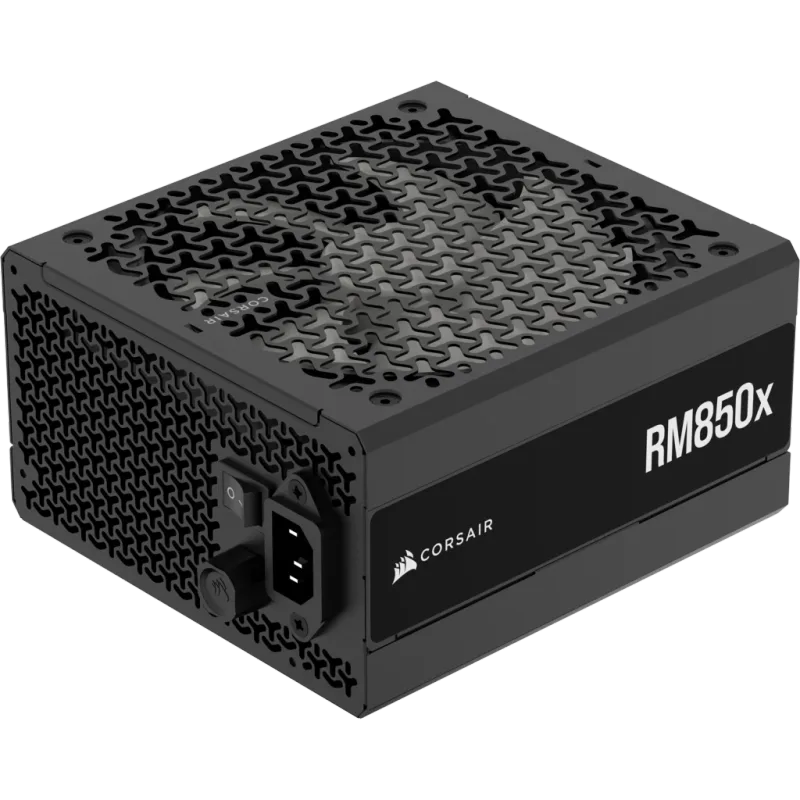

Corsair RM850x ATX 3.1
Corsair RM850x ATX 3.1
The Corsair RM850x ATX 3.1 (ASIN B0DJ1JL3MK) is the updated version of one of the most consistently recommended PSUs in the enthusiast community. The 2024/2025 revision adds full ATX 3.1 compliance, a native 12V-2x6 connector, and Cybenetics Gold certification alongside the existing 80+ Gold rating.
The FDB 140mm fan runs in zero-RPM mode at loads below roughly 40% of rated output, which means it stays completely silent during desktop use, light gaming, and even 1440p gaming on an RTX 5070. Under sustained load — RTX 5080 at max power limit, for example — the fan spins up gradually with no audible step changes.
Corsair’s embossed flat cables are among the most flexible in the category. Routing a 24-pin cable behind a modular mid-tower tray with limited clearance is noticeably easier than with Seasonic’s stiffer round cables. The cable bag includes one 12V-2x6 cable, two PCIe 6+2-pin cables, and two additional PCIe 6+2-pin for quad-connector setups.
Voltage regulation across the 12V rail holds within ±1% under full load per Hardware Busters’ review, with ripple suppression well under the ATX 3.1 spec limit. The 10-year warranty is standard at this tier but worth noting — Corsair actually honors it without the friction some brands introduce.
At ~$149, it costs more than the be quiet! and NZXT options, but the combination of Corsair’s cable quality, zero-RPM implementation, and service record justifies the premium for most builders.

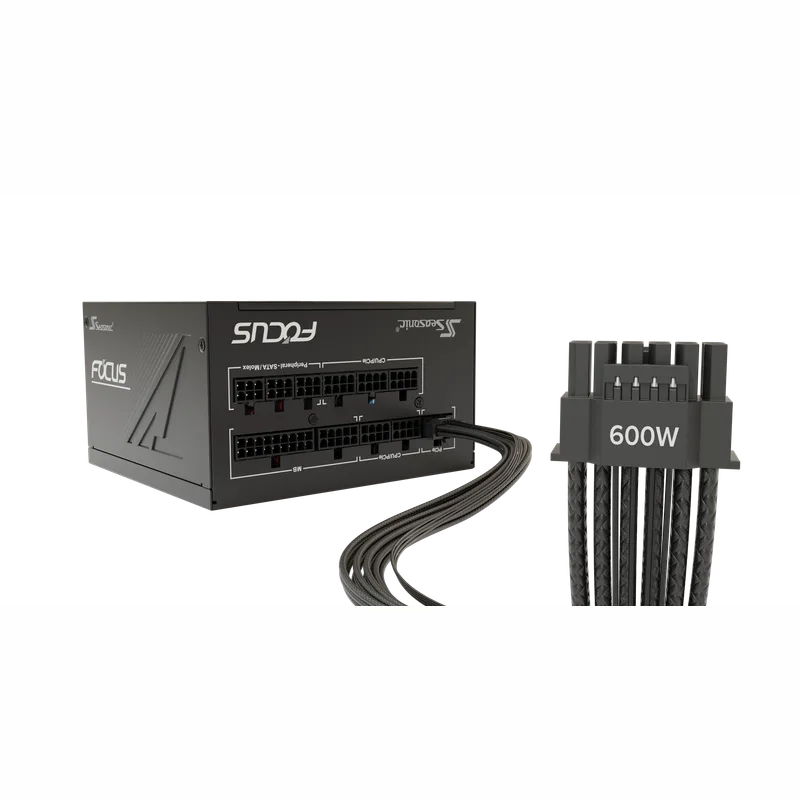

Seasonic Focus GX-850 V4
Seasonic Focus GX-850 V4
The Seasonic Focus GX-850 V4 (ASIN B0DLFMTX12) is the most efficient 850W ATX 3.1 option in this roundup, carrying both 80+ Gold and Cybenetics Platinum certification. Seasonic has made the Focus GX their volume workhorse for years, and the V4 update brings ATX 3.1 compliance with a new OptiSink PCB layout that improves internal airflow and heat dissipation.
The practical efficiency advantage shows in case temperatures. Where a Gold-rated PSU wastes roughly 8-10% of drawn power as heat at 50% load, the Platinum-rated Focus GX V4 loses closer to 6-7%. In a closed mid-tower case, that’s a measurable difference in exhaust air temperature.
At 140mm depth, the Focus GX V4 is notably compact for a full ATX unit. It fits in cases like the Fractal Design North (which has a 220mm PSU clearance) with room to spare, and works in most mid-towers without requiring an extension bracket.
The one concession versus Corsair: the fan does spin at low RPM even under light loads rather than shutting off completely. Hardware Busters measured it at around 600 RPM at 20% load — inaudible in most environments, but not zero. If complete silence at idle is important, the Corsair RM850x or NZXT C850 are better choices.
At ~$140, it undercuts the Corsair RM850x while delivering the stronger efficiency certification. For builders prioritizing efficiency metrics and thermals over cable ergonomics, it’s the better pick.

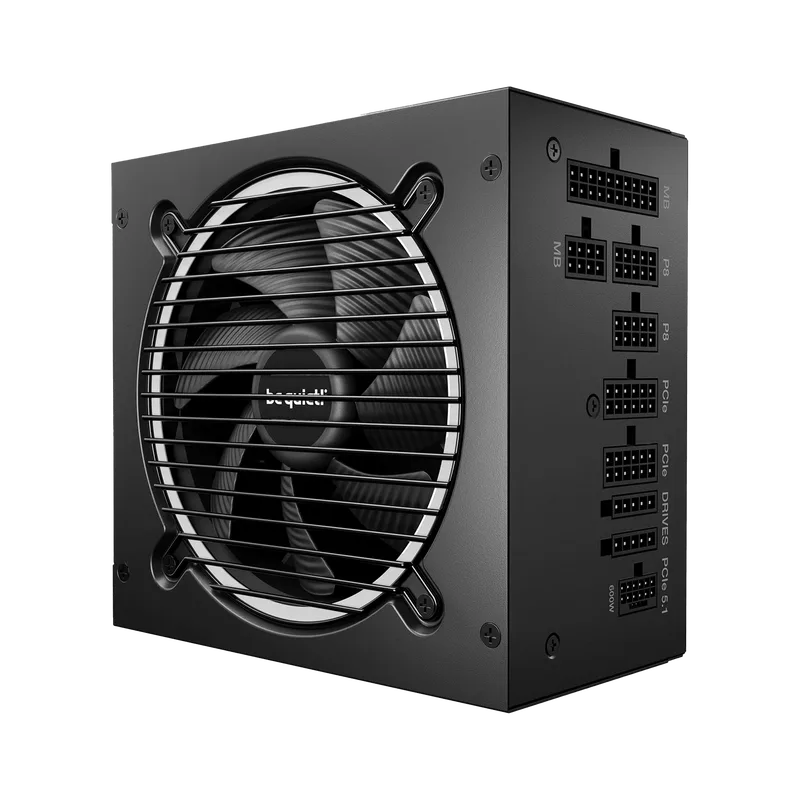

be quiet! Pure Power 13 M 850W
be quiet! Pure Power 13 M 850W
The be quiet! Pure Power 13 M 850W (ASIN B0FBY3F1NT) arrived in June 2025 and immediately became the quietest ATX 3.1 option at the 850W tier. The semi-passive 120mm fan carries a Cybenetics noise score of A — compared to B or A- from most competitors — meaning less acoustic energy at all load levels.
The platform delivers up to 94.4% peak efficiency, slightly above its 80+ Gold floor, and Cybenetics’ independent testing confirmed the unit holds efficiency well throughout the load curve rather than peaking narrowly at 50%.
For cable flexibility, the Pure Power 13 M includes one 12V-2x6 cable plus four PCIe 6+2-pin connectors. That four-connector count gives options for multi-GPU workstations or high-powered single-GPU builds that use two separate PCIe leads for cleaner power delivery.
The single 12V rail design simplifies overcurrent protection — all 850W is available to any combination of connected devices without load-balancing between rails. This is standard for premium PSUs in 2026 but worth confirming in budget units.
At ~$110, the be quiet! Pure Power 13 M is $40 cheaper than the Corsair RM850x for comparable specifications. The only genuine downsides are the shorter 120mm fan (runs slightly faster than 135-140mm options at peak load) and less than a year of field data compared to the established Focus GX and RM850x platforms.

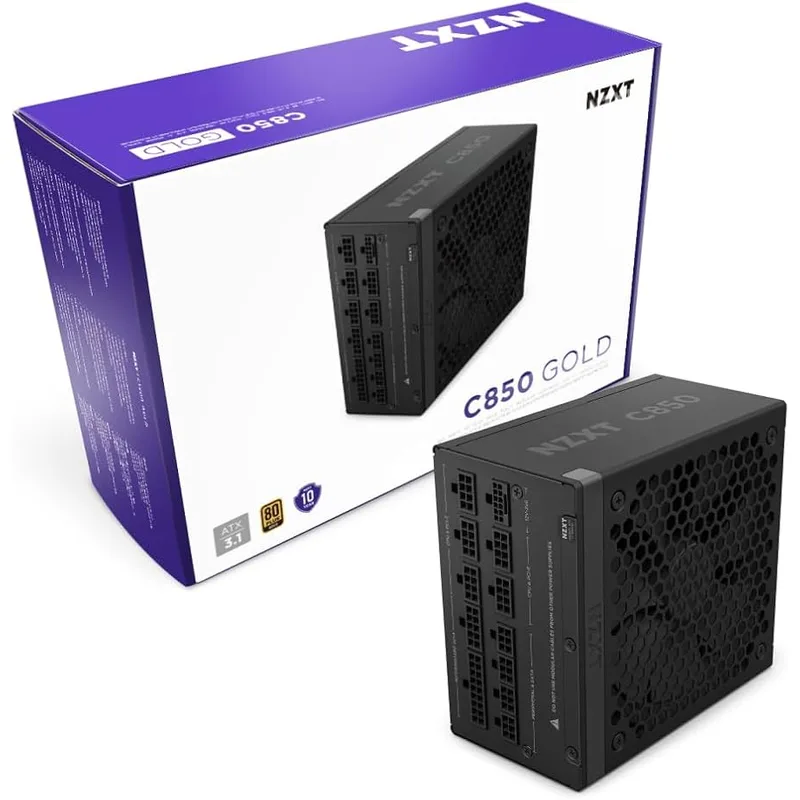

NZXT C850 Gold ATX 3.1
NZXT C850 Gold ATX 3.1
The NZXT C850 Gold ATX 3.1 (ASIN B0D1VDTX8B) is NZXT’s current-generation fully modular ATX 3.1 PSU, built around a well-regarded internal platform with 100% Japanese capacitors and a 135mm FDB fan that matches Corsair’s zero-RPM implementation. The fan stays completely off until the PSU reaches approximately 50% of rated output — around 425W sustained draw.
At 160mm depth, the C850 fits in virtually every mid-tower and most compact cases without issue. The 12V-2x6 connector is rated for 600W continuous, matching the spec needed for RTX 5080 gaming workloads where GPU power draw spikes regularly above 350W.
The cable complement includes one 12V-2x6, two PCIe 8-pin connectors, and additional SATA/peripheral leads. The PCIe count (two 8-pin rather than four 6+2-pin) is the main limitation for workstation builders — for a pure gaming build with a single GPU, it’s not a concern.
NZXT backs the C850 with a 10-year warranty, matching the industry standard for premium PSUs. The unit has been well-received in independent testing with voltage regulation staying within ±1% on the 12V rail.
At ~$129, it positions between the be quiet! Pure Power 13 M ($110) and the Corsair RM850x ($149), making it a reasonable choice if you want zero-RPM fan behavior without paying Corsair’s premium.

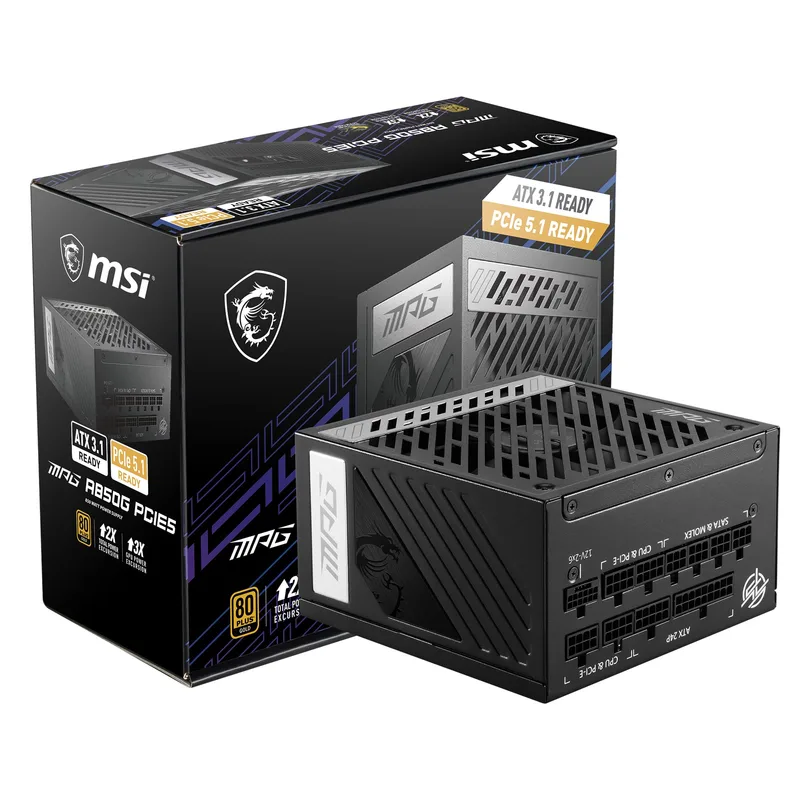

MSI MPG A850G PCIE5
MSI MPG A850G PCIE5
The MSI MPG A850G PCIE5 (ASIN B0B4345YV7) is MSI’s fully modular 850W gaming PSU, distinguished by a compact 150mm chassis that matches the shortest ATX 3.1 options in this class. At 150mm, it fits in cases where 160mm units are already tight and 180mm units won’t clear the drive cage.
The CWT platform inside delivers 80+ Gold efficiency with 100% Japanese 105°C capacitors. Voltage regulation is tight — the CWT platform is well-documented for holding 12V within ±1% at full load, which matters when an RTX 5080 draws sustained bursts above its rated 360W TDP.
The native 12V-2x6 cable handles RTX 50-series GPU power requirements without adapters. The cable bag also includes two PCIe 6+2-pin connectors for the GPU plus standard SATA and peripheral leads.
The main limitation versus the top four picks is fan behavior: the MPG A850G does not have a zero-RPM mode. The 135mm fan spins continuously, even at 10% load. At low speeds this is inaudible in a normal room, but it’s a real difference from the Corsair, NZXT, and be quiet! options that can operate in complete silence at idle.
At ~$130, the MSI MPG A850G competes directly with the NZXT C850 on price. The NZXT wins on noise behavior; the MSI wins on chassis depth for compact builds.
| Spec | Corsair RM850x ATX 3.1 $149 9.3/10 | Seasonic Focus GX-850 V4 $140 9.2/10 | be quiet! Pure Power 13 M 850W $110 9/10 | NZXT C850 Gold ATX 3.1 $129 8.9/10 | MSI MPG A850G PCIE5 $130 8.7/10 |
|---|---|---|---|---|---|
| Wattage | 850W | 850W | 850W | 850W | 850W |
| Standard | ATX 3.1 / PCIe 5.1 | ATX 3.1 / PCIe 5.1 | ATX 3.1 / PCIe 5.1 | ATX 3.1 / PCIe 5.1 | ATX 3.1 / PCIe 5.1 |
| Efficiency | Cybenetics Gold (~90%) | Cybenetics Platinum (92%+ at 50% load) | 80+ Gold (up to 94.4% peak efficiency) | 80+ Gold (Cybenetics Gold) | 80+ Gold |
| Modular | Fully modular | Fully modular | Fully modular | Fully modular | Fully modular |
| Fan | 140mm FDB zero-RPM | 135mm FDB hybrid fan control | 120mm semi-passive be quiet! fan | 135mm FDB zero-RPM (silent below 50% load) | 135mm low-noise fan |
| Warranty | 10 years | 10 years | 10 years | 10 years | 10 years |
| Rating | 9.3/10 | 9.2/10 | 9/10 | 8.9/10 | 8.7/10 |
FAQ
Do I need an ATX 3.1 PSU for an RTX 5080 or 5090?
You don’t strictly need ATX 3.1, but the native 12V-2x6 connector is strongly recommended. Older PSUs using the 12VHPWR connector through an adapter introduce a bend point at the GPU socket that can cause the sense pins to lose contact under high-current load. All five units here use 12V-2x6 natively, eliminating that failure mode.
Is 850W enough for an RTX 5080 build?
Yes for most configurations. The RTX 5080’s rated TDP is 360W, and a modern high-end CPU like the Ryzen 9 9800X3D draws around 120W under full gaming load. Add 50W for motherboard, RAM, storage, and fans: total system draw is around 530W peak, well within the 850W rating with a 38% headroom buffer. The MSI recommendation to pair an 850W PSU with an RTX 5090 (575W TDP alone) is not advisable — use 1000W minimum for that card.
What’s the difference between fully modular and semi-modular?
Semi-modular PSUs permanently attach the 24-pin ATX and CPU power cables. You cannot remove them regardless of your cable management needs. Fully modular units let you remove everything, including the 24-pin, and route only the cables your build requires. For most mid-tower builds, the difference in cable clutter is significant.
Does Cybenetics certification matter more than 80+ Gold?
They measure different things. 80+ Gold tests a single efficiency point (50% load at 50°C ambient) under standardized conditions. Cybenetics tests across the full load range at actual operating temperatures and adds acoustic measurement. Cybenetics Platinum genuinely outperforms 80+ Gold on real-world efficiency. The Seasonic Focus GX-850 V4 carries both and delivers measurably lower heat output than gold-only units.
Can these PSUs handle PCIe 5.0 SSDs like the Samsung 9100 Pro?
Yes. PCIe 5.0 SSDs draw under 20W from the M.2 connector, which is powered by the motherboard, not a separate PSU cable. The PSU’s 12V rail supplies the motherboard, so any 80+ Gold unit with stable voltage regulation handles PCIe 5.0 storage without issue.
The Bottom Line
For most high-end gaming builds in 2026, the Corsair RM850x ATX 3.1 is the safest all-around choice: proven platform, excellent cable ergonomics, zero-RPM silence, and 10-year warranty coverage. If efficiency is the priority and you want Cybenetics Platinum certification, the Seasonic Focus GX-850 V4 delivers at a slightly lower price. Budget-conscious builders who still want full modularity and class-leading acoustics should look at the be quiet! Pure Power 13 M 850W — it’s $40 cheaper than Corsair with no meaningful performance difference for gaming workloads.
